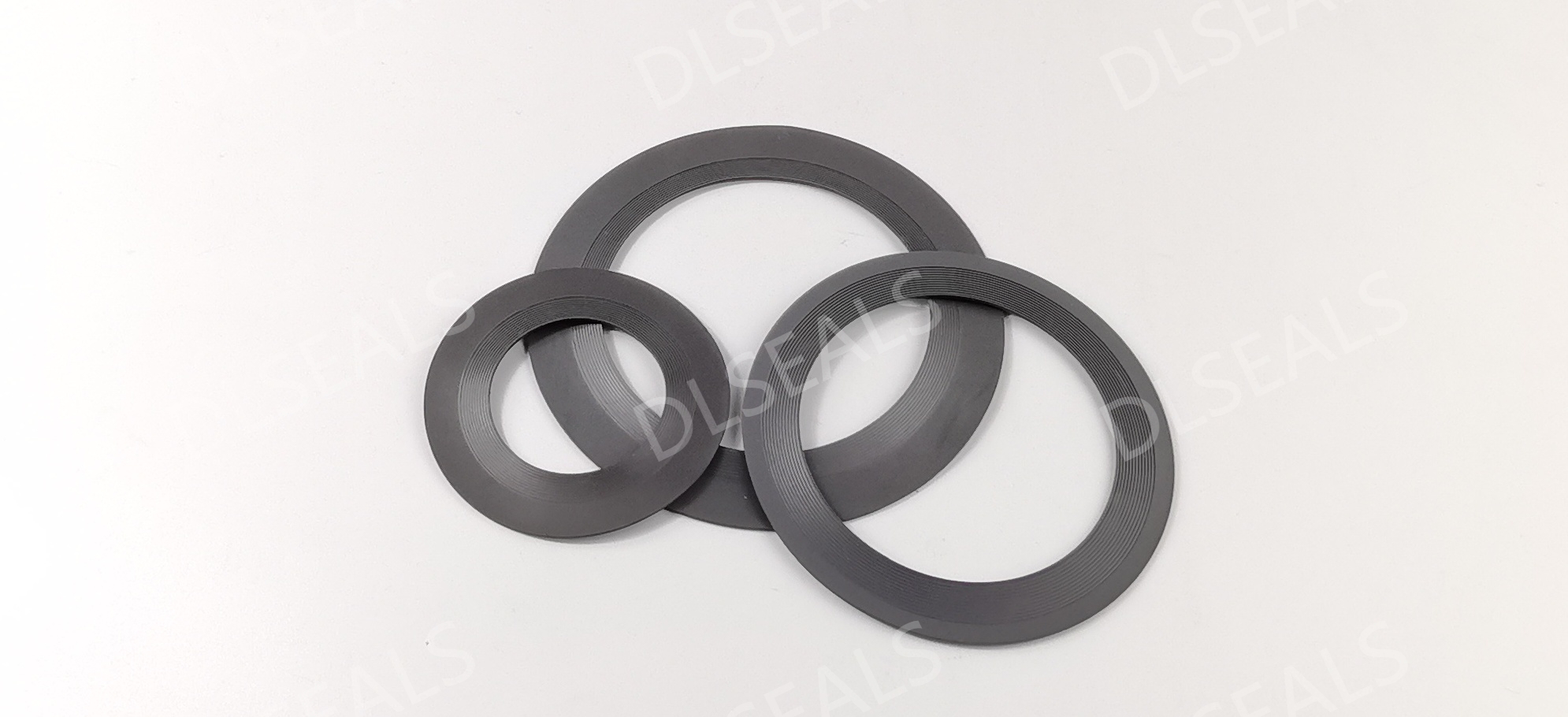

PTFE gaskets, usually referring to polytetrafluoroethylene (PTFE) gaskets, are widely used in many industries such as chemical, pharmaceutical, food, aviation, etc. for their excellent performance. This article will explore the manufacturing process of PTFE gaskets and the technological innovations in recent years.
Manufacturing process of PTFE gaskets
The manufacturing process of PTFE gaskets is relatively complex and involves multiple links. The following are the main manufacturing steps:
Raw material selection and processing:
The main raw material of PTFE gaskets is polytetrafluoroethylene resin. This resin has excellent heat resistance and chemical stability, and is usually produced by suspension polymerization or emulsion polymerization.
Before use, the raw materials need to be dried to remove moisture and impurities to ensure the quality of the final product.
Molding process:
Compression molding: The dried PTFE powder is loaded into the mold and molded by heating and pressure. This method is suitable for mass production and is suitable for the production of relatively thick gaskets.
Extrusion molding: PTFE resin is extruded by an extruder to form a film or other shaped product, which is subsequently cut into the required gasket. This process is mainly used to produce thinner gaskets.
Turning: For high-precision requirements, the turning process can be used to fine-process the molded PTFE material to ensure the accuracy of its appearance and size.
Post-processing:
Sintering: The molded PTFE gasket usually needs to be sintered to further improve its density and mechanical strength. The sintering process also helps to remove bubbles and defects that may be generated during molding.
Surface treatment: In order to improve the performance of the gasket, surface treatment such as polishing, etching or other specific treatments is sometimes required. This can enhance its anti-adhesion and sealing properties.
Quality inspection:
PTFE gaskets must undergo strict quality inspections before leaving the factory, including tests of parameters such as thickness, density, dimensional accuracy, tensile strength and elongation to ensure compliance with relevant standards and customer requirements.
Technological innovation
With the advancement of science and technology and changes in market demand, the manufacturing process and material technology of PTFE gaskets are also constantly innovating. Here are some current trends in technological innovation:
Research and development of new materials:
Composite materials: Compounding PTFE with other materials (such as glass fiber, carbon fiber, etc.) can significantly improve its mechanical strength and wear resistance, and expand the application range of gaskets.
Functionalized PTFE: Research and develop new functionalized PTFE, giving it special properties such as antibacterial and flame retardant properties to meet the needs of specific industries, such as the food and medical industries.
Environmentally friendly production process:
In the manufacturing process, more and more companies are beginning to pay attention to environmental protection and sustainable development. For example, using water-based slurry instead of traditional solvents can reduce pollution to the environment and reduce production costs.
Intelligent production:
With the advancement of Industry 4.0, the production line of PTFE gaskets has gradually introduced intelligent equipment. Through data monitoring and analysis, companies can optimize production processes in real time, improve efficiency and product quality.
Digital design and simulation:
Use computer simulation and simulation technology to analyze material properties and design gaskets to achieve more accurate structural design. This technology can shorten the R&D cycle and reduce development costs.
New molding technology:
Advanced molding technologies such as 3D printing are used to realize the production of PTFE gaskets with complex shapes, providing higher design freedom and quickly meeting small batch and diversified market needs.
Through the introduction of the above manufacturing process and technological innovation, the production of PTFE gaskets is not only a continuation of traditional processes, but also a combination of modern technology and industry needs. With the advancement of materials science and continuous innovation of technology, the application field of PTFE gaskets will continue to expand, and its performance will continue to improve to meet more stringent industrial standards and market needs.
