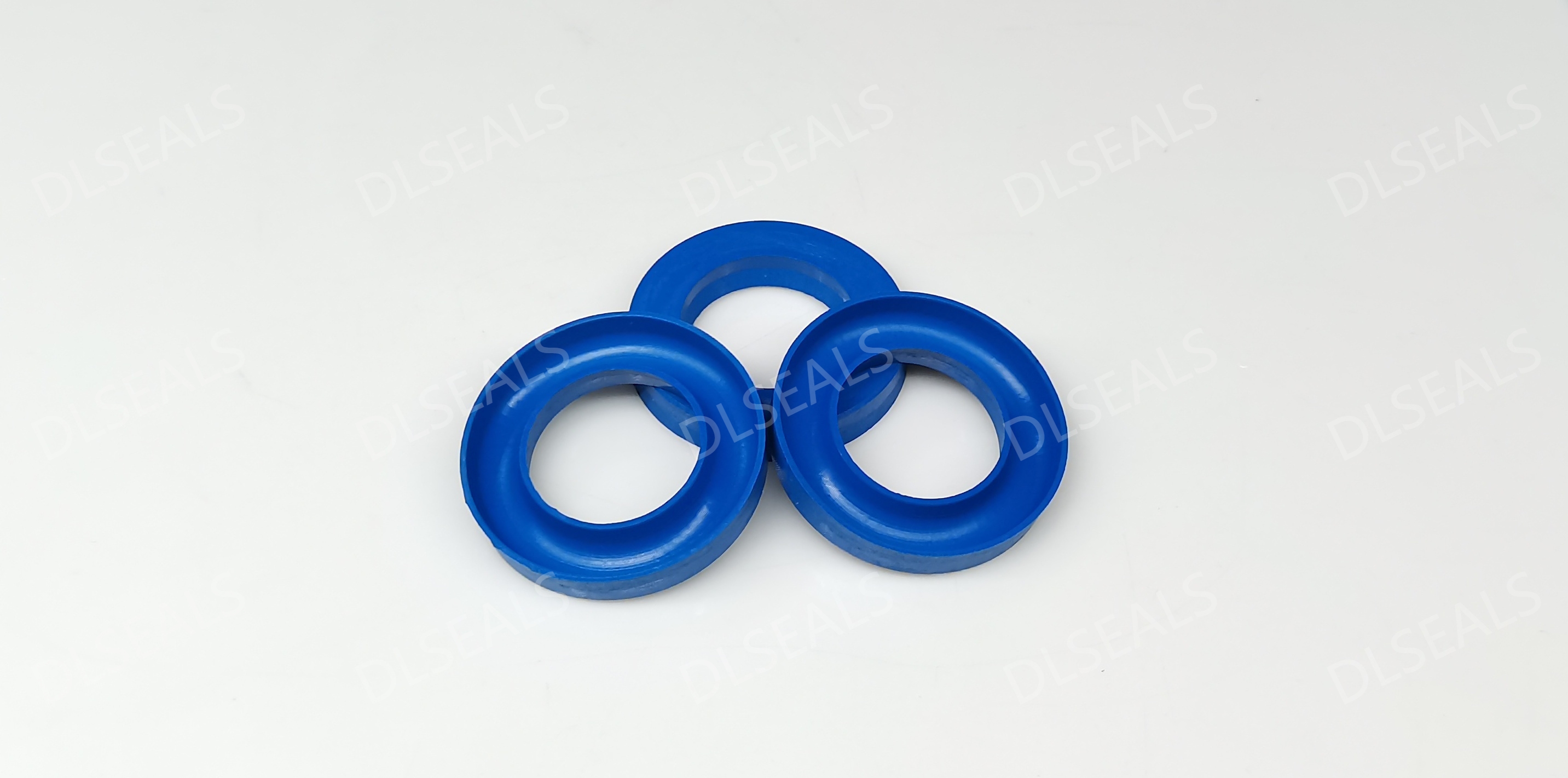

In modern industrial applications, rubber seals (also called sealing gaskets or rubber washers) play a vital role. They are mainly used to prevent liquid or gas leakage and protect mechanical parts from external contamination. However, when these seals are used in high temperature environments, their performance and life face severe challenges. This article will explore the problems and solutions of rubber seals in high temperature environments and look forward to future development trends.
Challenges of high temperature environment to rubber seals
Heat aging: In high temperature environments, rubber seals are prone to heat aging. High temperature accelerates the oxidation reaction of rubber materials, making them brittle and losing elasticity, resulting in reduced sealing performance and mechanical failure.
Softening and flow: High temperature can cause rubber seals to soften, which may cause the seals to flow or deform between contact surfaces, thereby affecting their sealing effect. This softening phenomenon may also cause the seals to slip out of the installation position.
Chemical degradation: Under high temperature conditions, rubber seals may undergo chemical degradation when they come into contact with chemicals (such as oil, fuel, coolant, etc.). High temperature accelerates these chemical reactions, further reducing the durability of the seals.
Dimensional changes: Changes in temperature may cause the size of the rubber seal to change, such as expansion or contraction. This dimensional change may affect the sealing performance and mechanical adaptability of the seal.
Solution
Choose high temperature resistant materials: In order to improve the performance of rubber seals in high temperature environments, special rubber materials suitable for high temperatures can be selected. For example, fluororubber (FKM), silicone (VMQ) and polyurethane rubber (PU) have good high temperature tolerance. Fluororubber can withstand temperatures up to 300°C, while silicone and polyurethane rubber have a high temperature resistance range of around 200°C.
Improve rubber formulation: The high temperature stability of rubber materials can be enhanced by adjusting the formulation and production process of rubber. For example, adding antioxidants, stabilizers and cross-linking agents can improve the thermal aging resistance of rubber.
Optimize seal design: When designing, you can consider increasing the thickness of the seal or using a composite structure to improve its stability and durability in high temperature environments. In addition, the geometry and installation method of the seal can also be optimized to reduce the impact of temperature changes on its performance.
Regular maintenance and inspection: In high temperature applications, regular inspection and maintenance of rubber seals are essential. Replace aging or damaged seals in time to ensure the normal operation of the system.
Future Development Trends
With the continuous advancement of science and technology, the materials and designs of rubber seals are also constantly developing. The following trends may appear in the future:
Application of smart materials: New smart materials (such as responsive materials) may be introduced into rubber seals, which can automatically adjust their performance in high-temperature environments to adapt to different working conditions.
High-performance composite materials: The use of composite materials can further improve the performance of seals. For example, compounding rubber with ceramic or metal materials may significantly improve its high-temperature resistance and mechanical strength.
Environmentally friendly materials: Environmental protection and sustainable development will become the focus of future development. The development of environmentally friendly and high-performance rubber materials will be an important direction for future research to reduce the impact on the environment and improve the efficiency of resource utilization.
Conclusion
In high-temperature environments, the performance of rubber seals faces many challenges, but by selecting suitable materials, improving formulations and designs, and regular maintenance, its reliability under high-temperature conditions can be effectively improved. With the continuous advancement of science and technology, we have reason to believe that future rubber seals will be able to provide more outstanding performance in more demanding environments, promoting technological progress and development in all walks of life.
