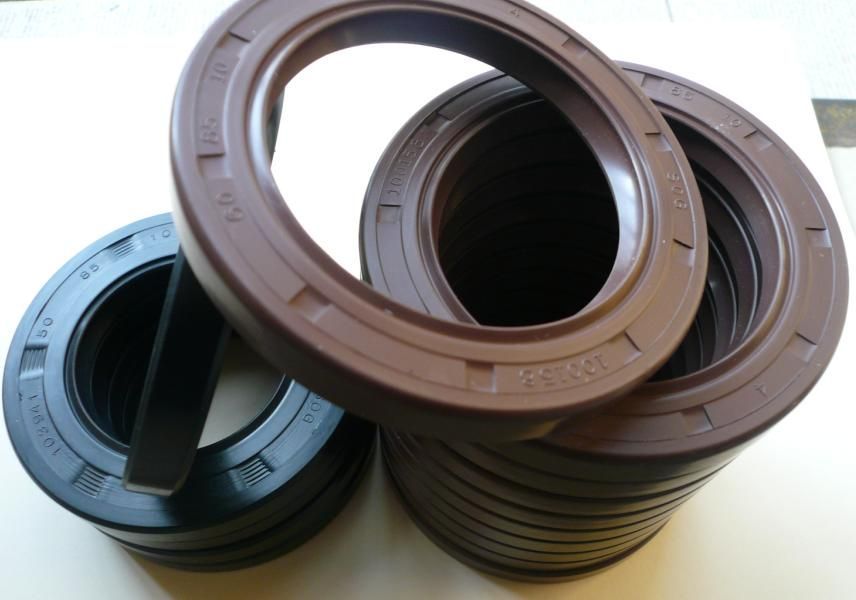

♠Description-VG Oil Seal
VG Oil Seal is a rubber inner package skeleton. It has no spring structure and is usually used with needle roller bearings. Single lip without spring, low friction coefficient, used for rotating dust. Suitable for grease machine with dust. It is not recommended in stressful situations.
♥Property
| Name | VB type skeleton oil seal |
| Material | VITON NBR SILICONE RUBBER |
| Temperature | -30~+110℃ |
| Press | 0-0.2MPA |
| Medium | Water, Oil, Grease |
| Application | 1. It is made of rubber NBR bonded to a metal skeleton (fluorine rubber can be selected in special cases) |
| 2. Generally applicable to grease and dusty occasions, it is not recommended to use when there is pressure. |
♣Advantage
● The structure is simple and easy to manufacture.● Lightweight and low consumables.● The oil seal has a small axial dimension, is easy to machine, and makes the machine compact.● The sealing machine has good performance and long service life.● The oil seal has certain adaptability to the vibration of the machine and the eccentricity of the spindle.● Easy to disassemble and easy to test.
♦Catalog
| VC/VG/VCW Type skeleton Oil Seal | ||
| ID*OD*H | ||
| 6*10*3 | 16*25*3 | 28*40*4 |
| 8*12*3 | 17*23*3 | 28*40*5 |
| 8*14*4 | 18*24*3 | 30*37*4 |
| 8*16*3 | 18*24*4 | 30*40*4 |
| 9*16*3 | 18*26*4 | 30*42*4 |
| 9*28*4.1 | 19*25*3.2 | 32*42*4 |
| 10*14*3 | 19*27*4 | 35*42*4 |
| 10*17*3 | 20*26*4 | 37*47*4 |
| 12*16*3 | 20*28*4 | 39*52*5 |
| 12*18*3 | 20*30*4 | 40*47*4 |
| 12*19*3 | 22*28*4 | 40*50*4 |
| 12*23*3 | 24*31*4 | 43*53*4 |
| 14*20*3 | 24*32*4 | 45*55*4 |
| 14*22*3 | 24*32*4 | 50*58*4 |
| 15*21*3 | 25*32*4 | 50*60.5*5 |
| 15*28*3 | 25*33*4 | 50*62*5 |
| 16*22*3 | 26*32*4 | 55*63*5 |
| 16*24*3 | 28*35*4 | 60*72*4 |
The above specifications are not complete. Besides, we can customize the non-standard parts for you.
Please feel free to contact me.
